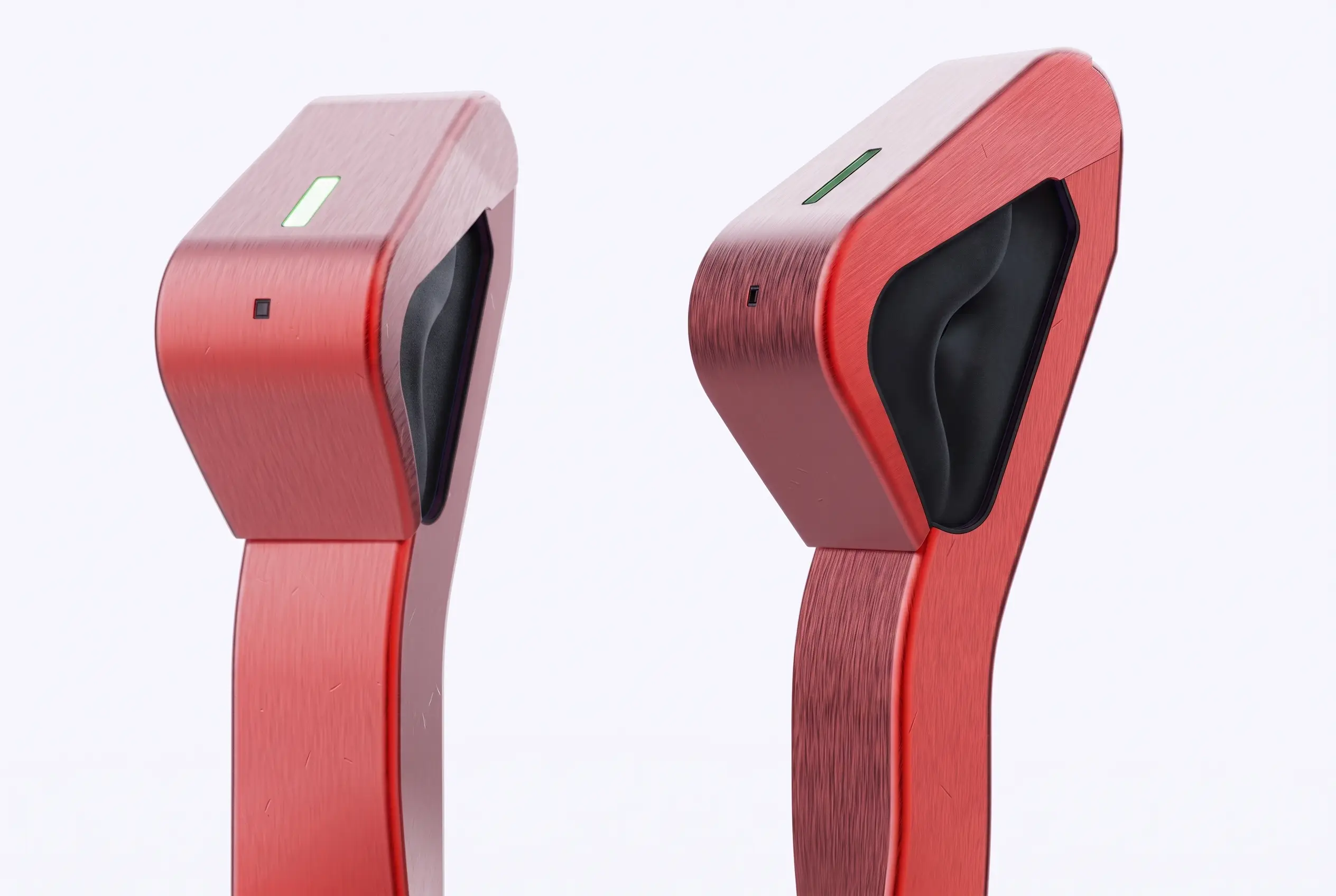

Close view of two InGo dock heads — red brushed housings with lit status indicators

Index 001 — Mobility

InGo

Client
Not published yet
Designed by
Not published yet
My role
Not published yet
Photos by
Not published yet
Location
Not published yet
Year
Not published yet
Area
Not published yet
Discipline
form · surface
385 R 0 3 Number of total BikeMi stations in Milan metropolitan area. Each containing in av- erage 24 bicycles. The basic reproduction number of Covid when the delta variant started was of 5-6, making it very contagious. Number of days Covid strains can survive in plastic materials 5.4K Number of total BikeMi bicycles in Milan The pandemic has changed the transportation behaviour in many urban areas around the world. As a consequence, bike sharing has been affected due to the change we move and distance us. Although this type of transportation does not usually interact much with other people, the touching points such as handle and seat can still transmit certain diseases. The time consuming and price to keep cleaning personnel on each station for this type of service is not a feasible option. BIKE SHARING IN TIMES OF PANDEMIC PROBLEM
OPPORTUNITY Design a fast cleaning system that sanitizes the most important touching points (handles) Based on research, a UV sanitizer for each handle would be fast, A SANITIZING SYSTEM FOR BIKES 10-20K Approximate batch size for a solution (2 handles per bike) 120° 90% 5 min Coverage area of the handle should be of at least 120° to garantee the most impor- tant contact points Performance of suppression of most common pathogens of at least 90% Timing of sanitation: under 5 min 0 Little to no mantainance required to keep the use of bikes unaltered

01 — Moodboard

02 — Iteration

Iteration 1: completely following aesthetic and form exploration.
Iteration 2: based on manufacturability as well as real life constraints.
Iteration 3: The third one consisted on engineering as well as optimization for methods for production.

03 — Resolved

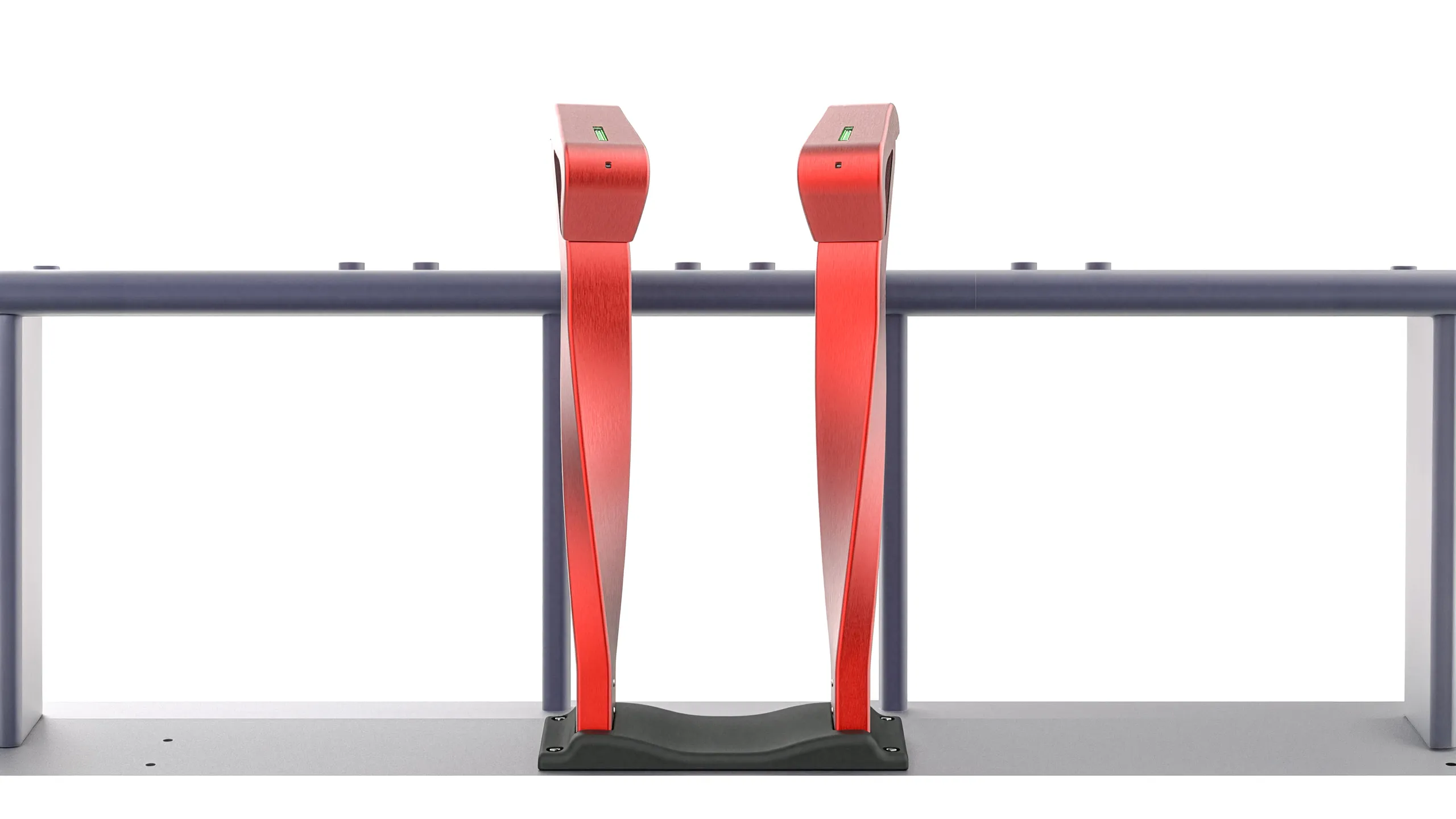

The resolved dock pair on its rail — swept red uprights carrying the housing, seen square on

04 — Anatomy

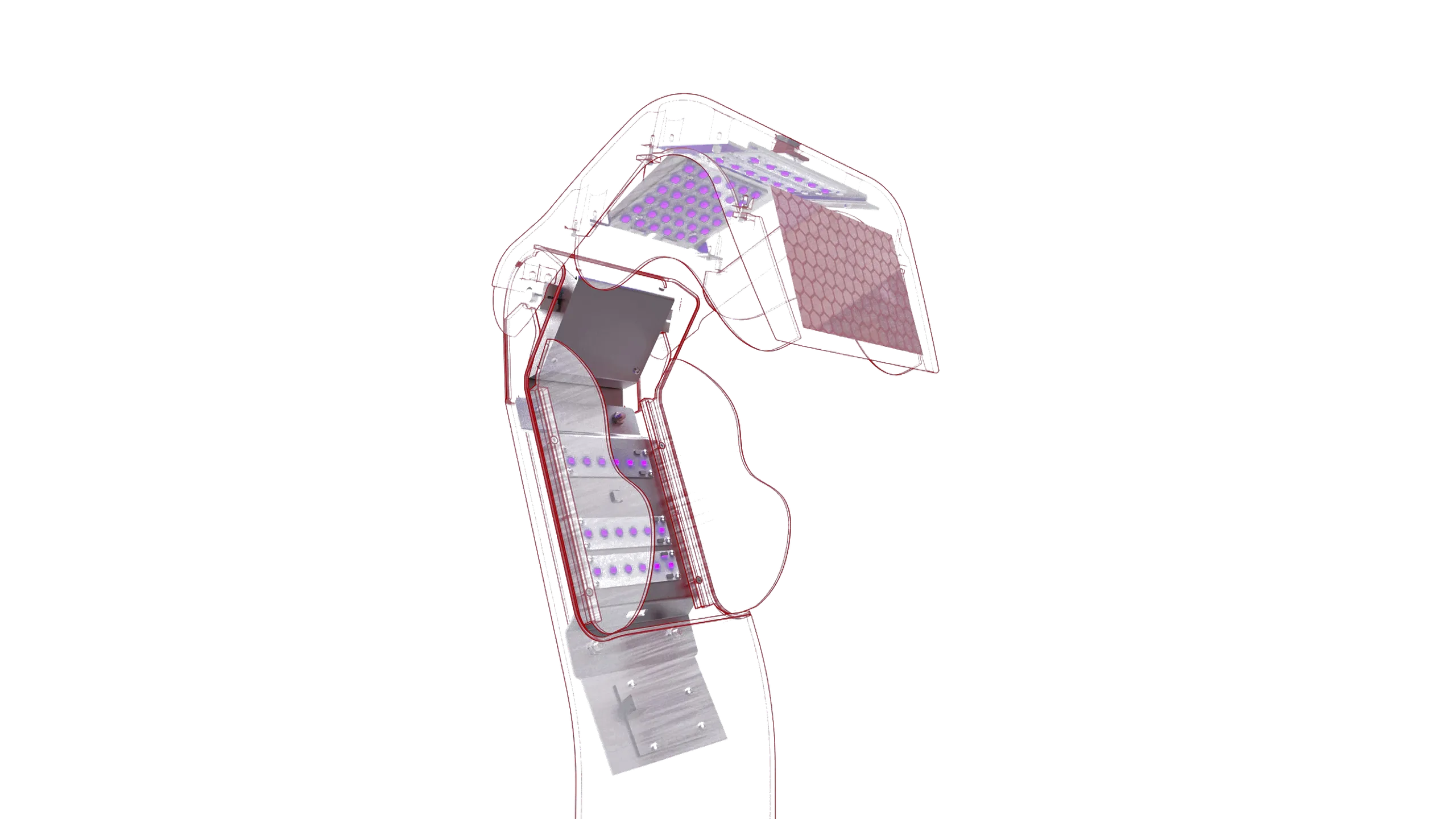

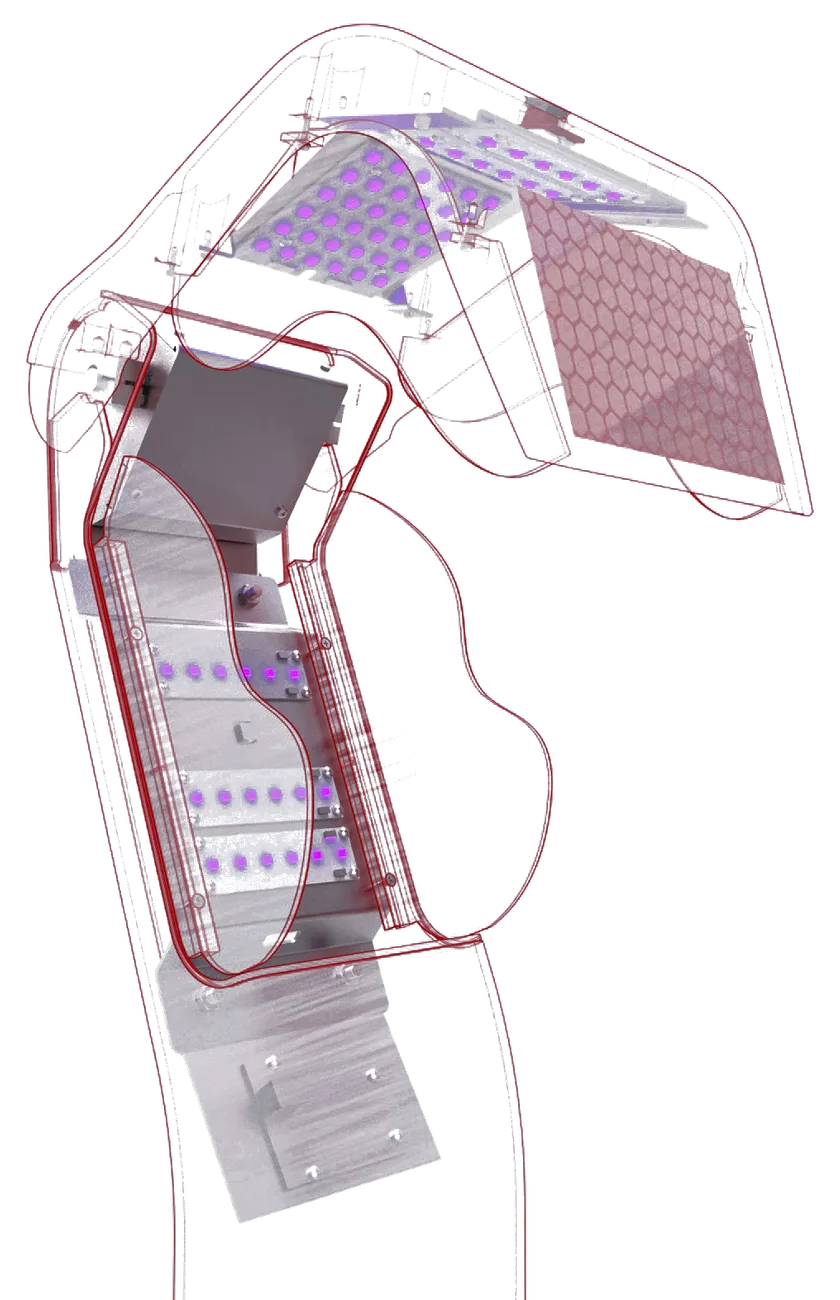

X-ray of the sanitising head — UV emitter arrays and a perforated reflector in the hinged lid, the drive block and three emitter strips down the column, over the base plate

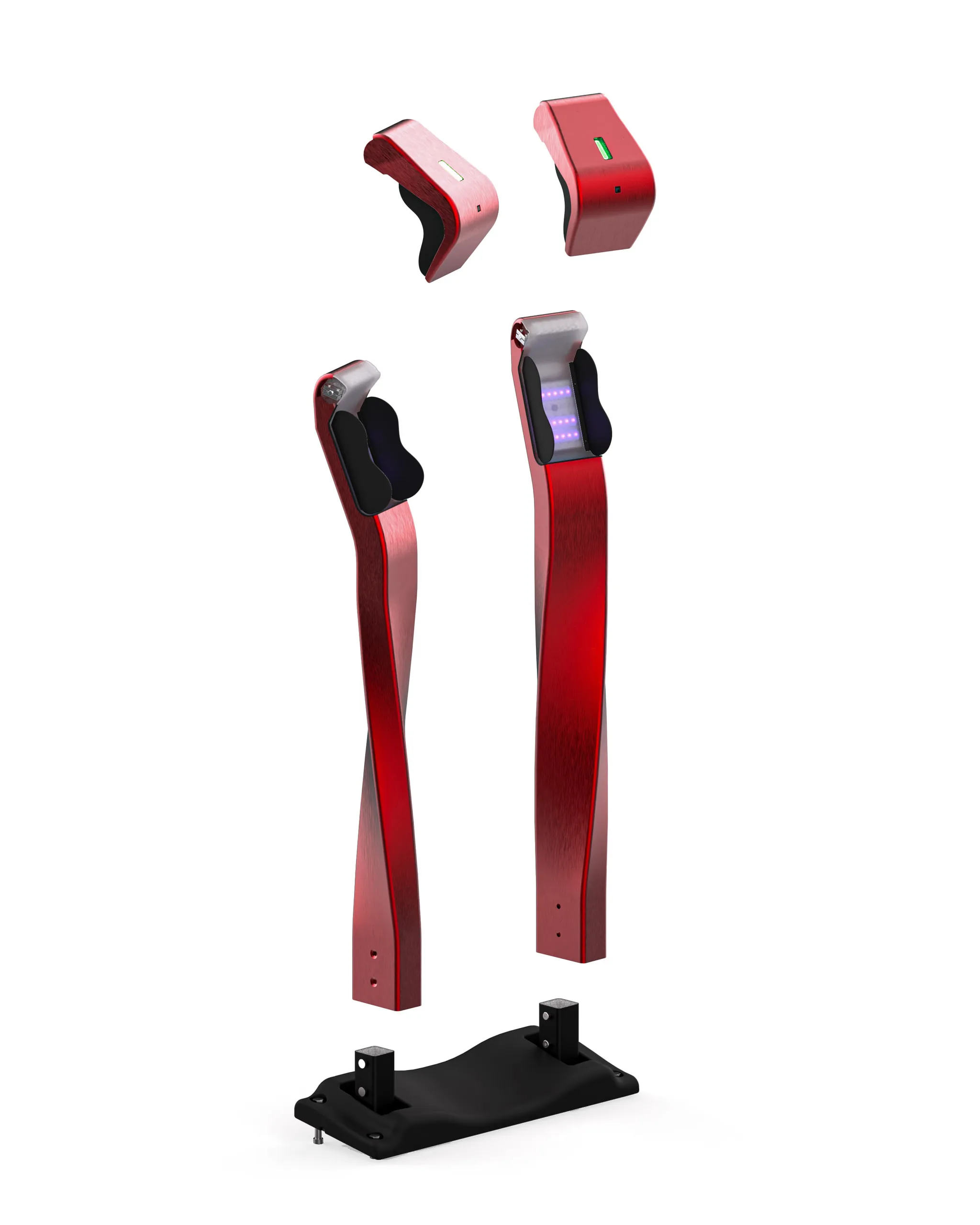

Exploded view of the dock — two head caps, two swept columns and the base plate, separated along the vertical axis

05 — CMF

Brushed Anodized Laquered Aluminium Red High-Density Traslucent Polyethylene Black Rough Elastomer Silicone Rubber CMF

06 — The system

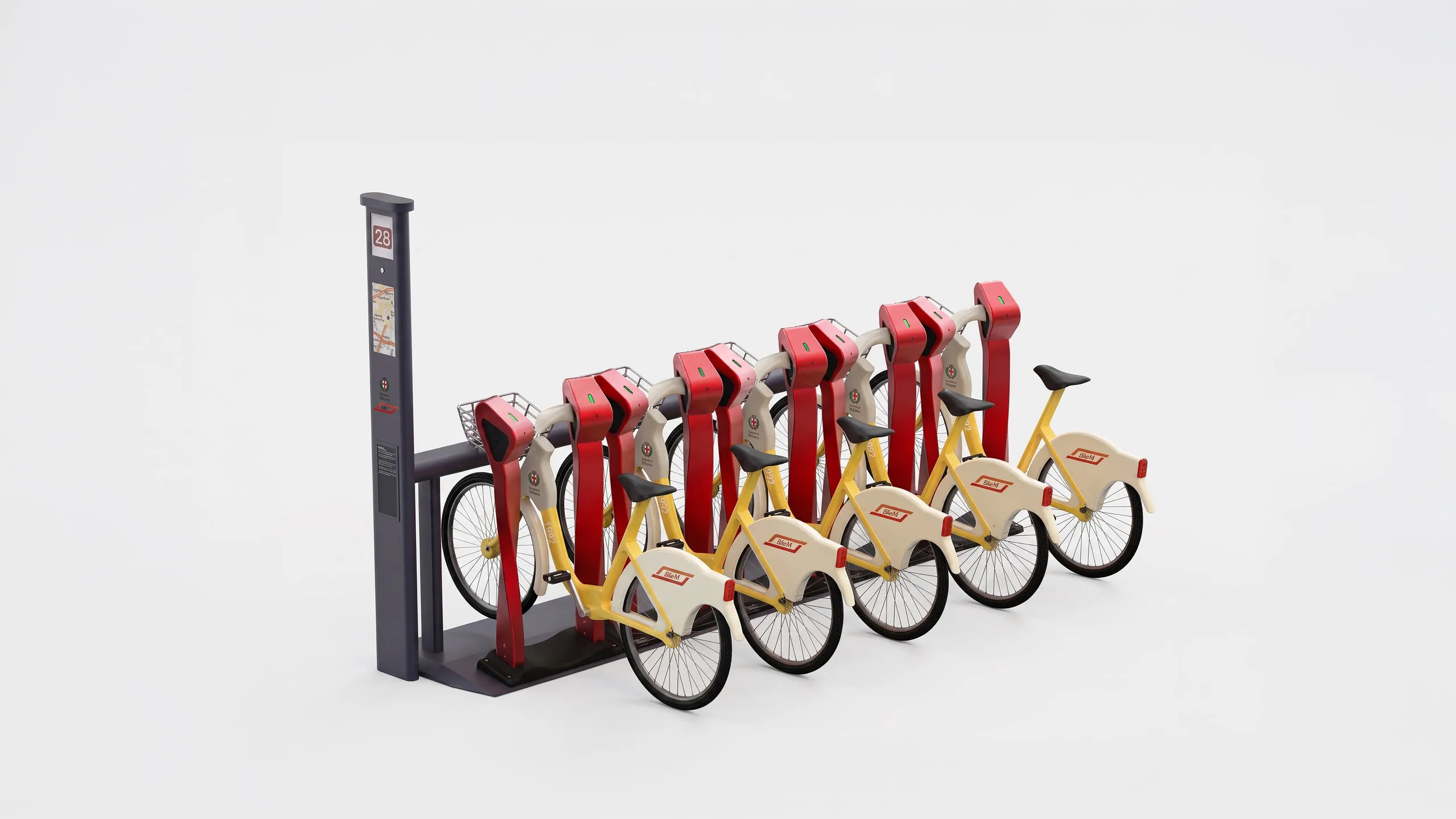

Full InGo station on a studio backdrop — row of docked bikes beside the information totem

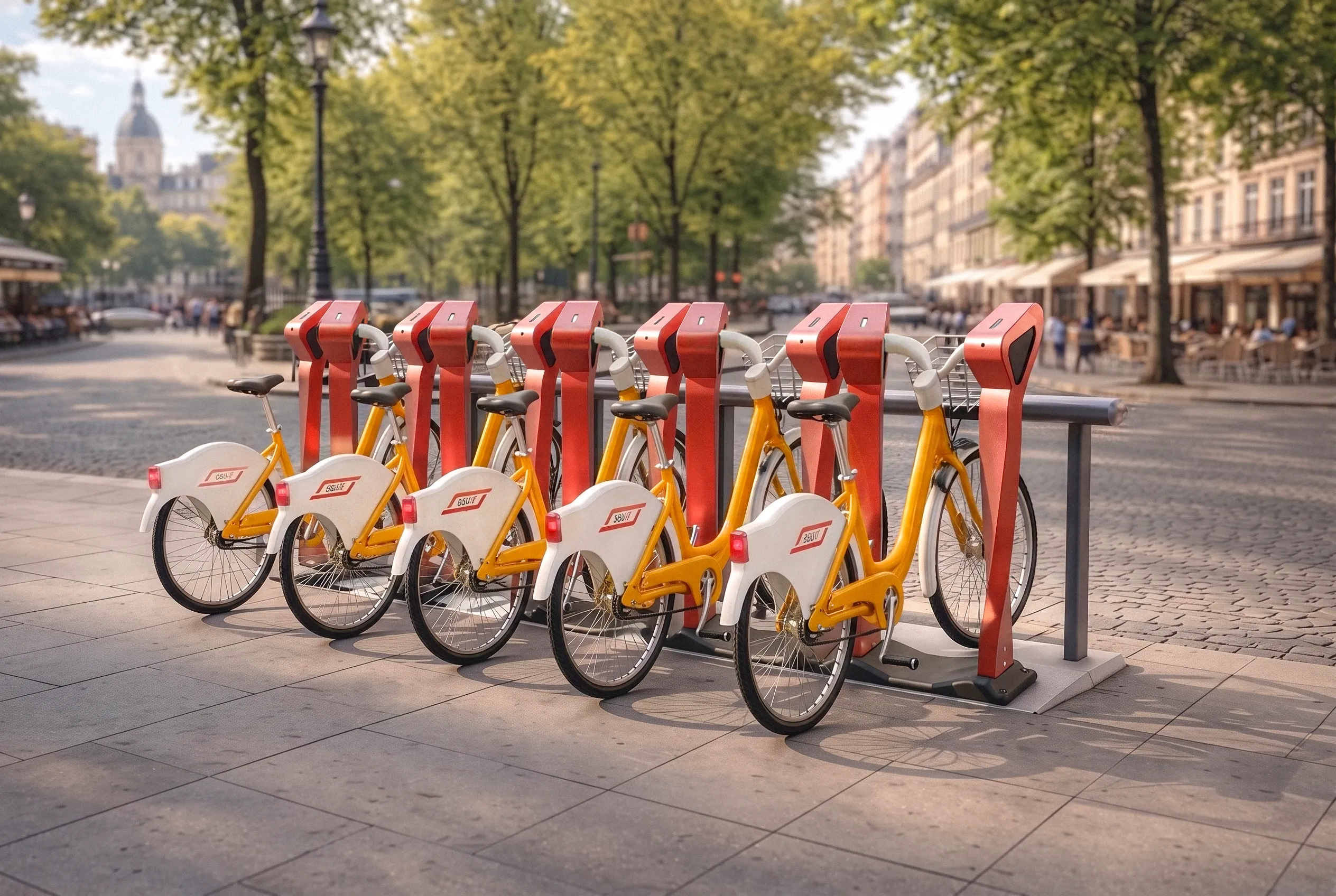

InGo bike-share station on a tree-lined city square — docked bikes on cobbles, cafés behind
